How does De Betonboorder's device selection aid work?

The wizard asks for the floor area (m²), optional ceiling height, whether you want to use supplementary heating in winter, whether the installation is on a tiled roof/knee wall, and whether there is sufficient wall or ceiling space. It then recommends the smallest Innova monoblock that fits in terms of capacity and fit. No rights can be derived from this advice.

What safety margin does the selection tool use for m²?

A standard margin of 5 m² is added to the specified surface area. For installation via a tiled roof/knee wall, an additional 10 m² is added (total +15 m²). With a known ceiling height, the volume (m³) is also included, with a +10 m³ margin (+25 m³ extra for roof installation).

When do you choose an ELEC model?

If you want to use supplementary heating in the winter, the selection tool recommends only ELEC models. In addition to the heat pump, these have an electric heating element for cold days.

When to use horizontal, MINI, vertical, or Ceiling?

Preference: horizontal model if there is approx. 80 × 105 cm of wall space (65 × 105 cm for flush mounting). If that does not fit and the space is small enough for the MINI 9HP: approx. 80 × 85 cm. Otherwise, vertical (approx. 160 × 70 cm) for narrow walls. Ceiling (approx. 35 × 115 cm) only as a fallback when you want to hang close to the ceiling and wall-mounted models do not fit. Vertical and Ceiling models are not suitable for tiled roof installations.

Which Innova model suits which space?

Indication with good insulation: MINI 9HP up to approx. 28 m² / 72 m³; 10HP and 12HP Vertical up to approx. 41 m² / 103 m³; 12HP, 12HP ELEC, 15HP Vertical, 15HP ELEC Vertical and Ceiling up to approx. 48 m² (horizontal/vertical also 120 m³); 15HP/15HP ELEC up to approx. 58 m² / 146 m³; 18HP ELEC up to approx. 68 m² / 170 m³. The wizard selects the smallest model that still fits after a safety margin.

What if the facade has obstacles?

The drill holes must be able to exit unobstructed to the outside. In the event of obstacles such as a downpipe, window frame, extension, or a flat roof higher than the indoor floor, online advice is not reliable; please contact us via info@debetonboorder.nl or 085-0653017.

Device selection wizard | De Betonboorder

How big is the room?

Area (m²) *

Ceiling height in cm (optional)

If you do not know the height, we base the advice on square meters. With height, we can better take high ceilings into account.

Do you want to use supplementary heating in the winter?

Yes, I want to heat up. No, only cooling

Installation and available space

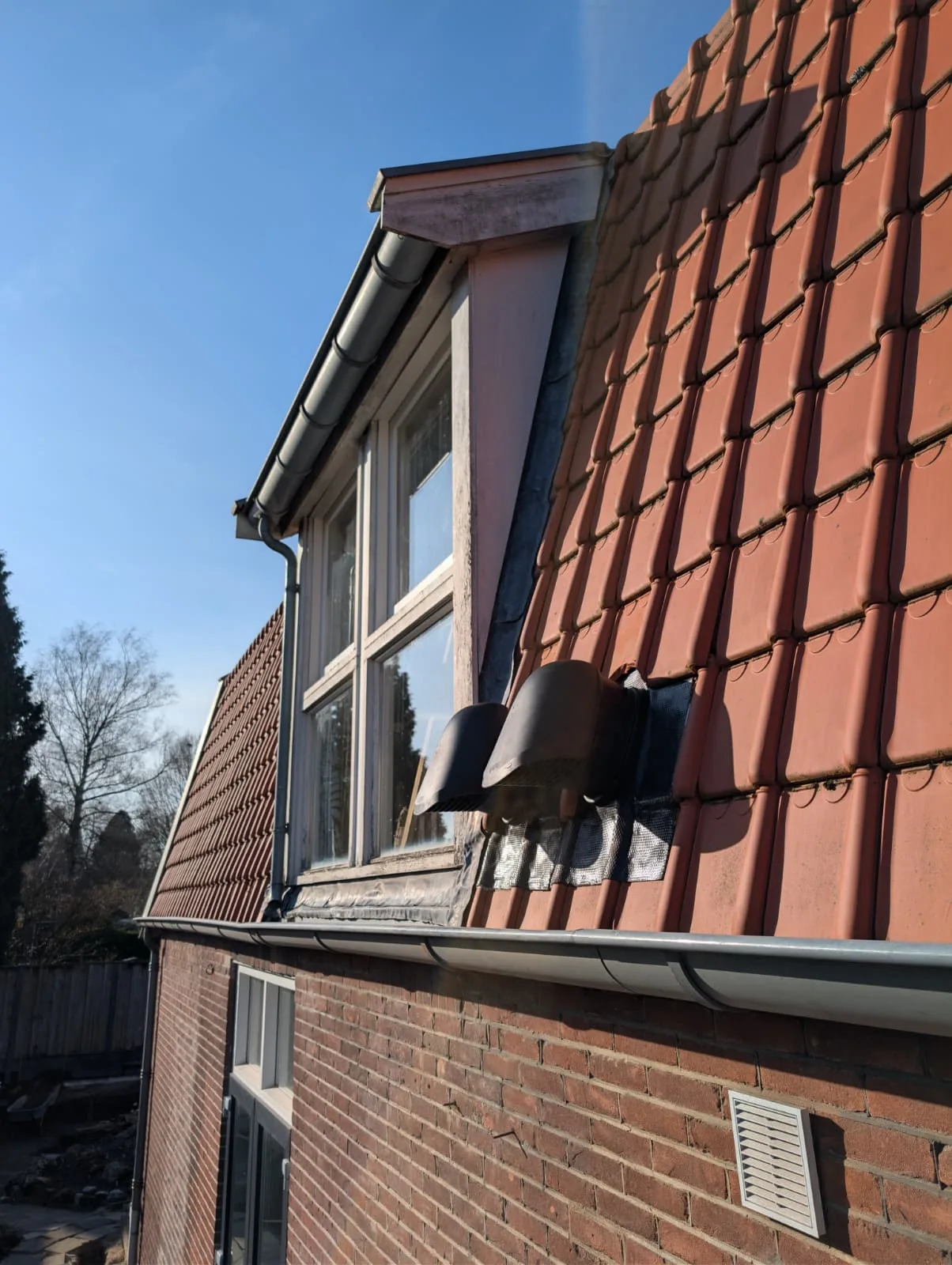

Does the installation need to go through a sloping tiled roof?

Ja No

If it does not need to go through a sloping roof, we assume installation through a exterior/facade wall.

Is there a knee wall where we can hang the air conditioner?

Ja No

Is there a window or dormer near where the air conditioner needs to be installed?

Ja No

Do you want to hang the device close to the ceiling?

Ja No

Do you want to hang the device flush under a windowsill that protrudes more than 5 cm?

Ja No

Is there a space of 80 × 105 cm (height × width) available on the wall?

Ja No

Is there actually a space of 80 × 85 cm (height × width) available on the wall?

Ja No

Is there actually a space of 160 × 70 cm (height × width) available on the wall?

Ja No

Is there a space of 35 × 115 cm (height × width) available for a ceiling model?

Ja No

Is the facade otherwise free of obstacles?

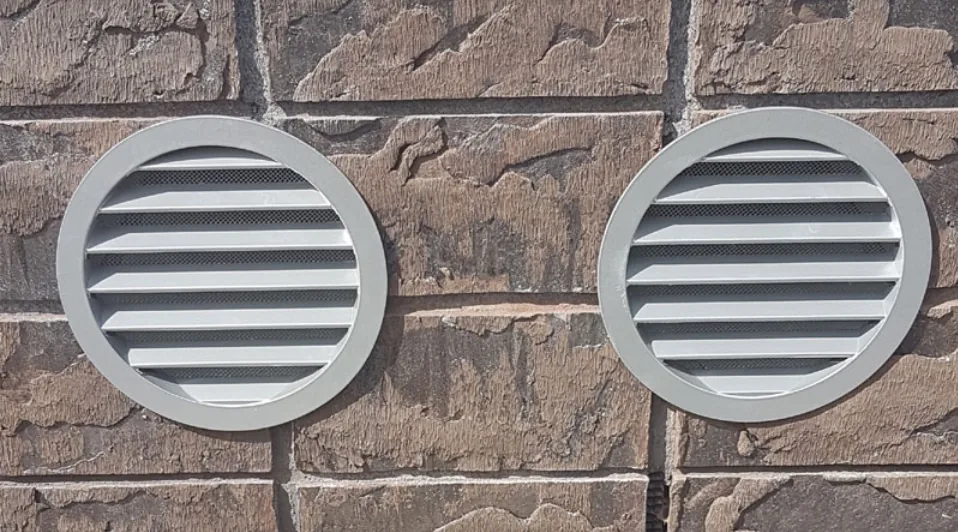

The device must not only fit inside: the drill holes must meet the outside also be able to come out freely. Watch out for obstacles on the facade (such as a downpipe, window frame, or extension) and on a flat roof that is higher than the interior floor — the holes then exit outside below roof level.

Ja No Doubt

Type	Appliance (approx.)	Standard clearance	Tighter (less headroom)
Horizontal	55 × 101 cm	80 × 105 cm	65 × 105 cm
MINI 9HP	55 × 81 cm	80 × 85 cm	65 × 85 cm
Vertical	133 × 58 cm	160 × 70 cm	145 × 70 cm
Ceiling	32 × 110 × 83 cm (HxWxD)	35 × 115 cm

Door Design	Cooling	Heating Capability	Until approx.	From
MINI 9HP	2,35 kW	2,40 kW	28m² / 72m³	€ 1.749
10HP	2,60 kW	2,64 kW	41m² / 103m³	€ 1.749
12HP	3,10 kW	3,05 kW	48m² / 120m³	€ 1.949
12HP ELEC	3,10 kW	3,05 kW + heater	48m² / 120m³	€ 2.199
15HP	3,50 kW	3,50 kW	58m² / 146m³	€ 2.149
15HP ELEC	3,50 kW	3,50 kW + heater	58m² / 146m³	€ 2.399
18HP ELEC	4,10 kW	4,05 kW + heater	68m² / 170m³	€ 2.699
12HP Vertical	2,29 kW	2,36 kW	41m² / 103m³	€ 2.499
15HP Vertical	2,72 kW	2,70 kW	48m² / 120m³	€ 2.599
15HP ELEC Vertical	2,72 kW	2,70 kW + heater	48m² / 120m³	€ 2.799
12HP Ceiling	3,05 kW	3,00 kW	48m²	€ 2.899
12HP ELEC Ceiling	3,05 kW	3,00 kW + heater	48m²	€ 3.099
